Product Description
Manufacturing Specifications: DIN VDE0281
Rated Voltage Uo/U:300/500V, Amp. Rating: As Specified, Max. Temp:70°C
Conductor: flexible bare copper;
Insulation: colour coded PVC;

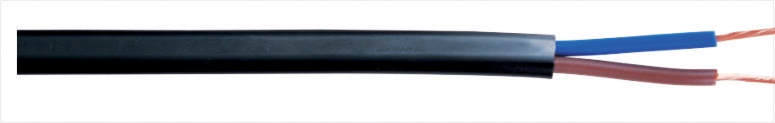

Jacket: black PVC, flat cable
Resistant to ozone, oxygen, UV rays and all common PVC resistance.
Lead Free/RoHS* version is available, too, please contact us for more details.
Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances(Lead Free, Cadmium Free, Mercury Free & Chromium Free, PBB & PBDE Free)
Application
For Connection of household appliances, radio and TV-sets and electrical devices to power supply networks with rated voltage U0/U -300/500V, Max. Temp:70°C.
H03VVH2-F 300/300V 70°C
|
Part
No. |
Product Type |
Core No.X mm2 |
Conductor |
Insulation |
Jacket |
Maximum
Resistance
at 20°C |
Specification
sheet |
|
No./mm |
Nom.
Dia. |
Nom.
Thick |
Nom.
Dia. |
Nom.
Thick. |
Nom.
Dia. |
|
mm |
mm |
mm |
mm |
mm |
Ω/KM |
|
192050 |
H03VVH2-F |
2 X 0.50 |
28/0.15 |
39.0 |
0.50 |
1.95 |
0.60 |
3.50X5.60 |
39.0 |
 |
|
192051 |
2 X 0.75 |
42/0.15 |
1.13 |
0.50 |
2.15 |
0.60 |
3.60X5.70 |
26.0 |
| |
