Product Description
Material PE, Nail
Color White, Grey.
Packing
Bag packing, box packing, Drum packing and other packing available as requested.
|

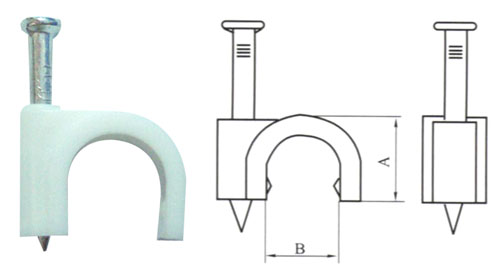

Part No. |
ITEM NO. |
A
mm |
B
mm |
NAIL SIZE
mm |
|
520101 |
R4mm |
5.3 |
4.0 |
1.7 X 15 |
|
520102 |
R5mm |
6.3 |
5.0 |
1.7 X 15 |
|
520103 |
R6mm |
7.4 |
6.0 |
1.85 X 16 |
|
520104 |
R7mm |
8.4 |
7.0 |
1.9 X 18 |
|
520105 |
R8mm |
9.4 |
8.0 |
2.0 X 19 |
|
520106 |
R9mm |
10.4 |
9.0 |
2.05 X 22 |
|
520107 |
R10mm |
11.4 |
10.0 |
2.3 X 23 |
|
520108 |
R12mm |
13.4 |
12.0 |
2.3 X 25 |
|
520109 |
R14mm |
16.4 |
14.0 |
2.35 X 28 |
|
520110 |
R16mm |
17.7 |
16.0 |
2.4 X 32 |
|
520111 |
R18mm |
19.7 |
18.0 |
2.6 X 38 |
|
520112 |
R20mm |
22.2 |
20.0 |
2.7 X 4.0 |
|
520113 |
R22mm |
25.0 |
22.0 |
2.9 X 43 |
|
520114 |
R25mm |
27.7 |
25.0 |
3.2 X 50 |
|
520115 |
R30mm |
33.1 |
30.0 |
3.2 X 53 |
|
520116 |
R32mm |
35.6 |
32.0 |
3.5 X 55 |
|
520117 |
R35mm |
36.6 |
35.0 |
3.5 X 60 |
|
520118 |
R40mm |
45.2 |
40.0 |
3.5 X 65 |
|
