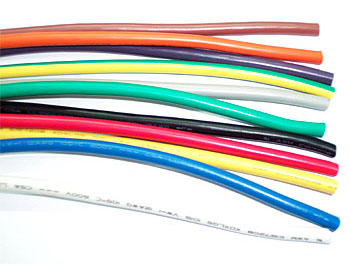

| UL1028 RoHS |
Product Description
Rated Voltage:600V, Rated temperature: 105°C.
Conductor: stranded ,tinned or bare copper , range from 22AWG to 8AWG.
Insulation: color-coded Lead Free/RoHS* PVC .
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis, oils, moisture and fungi.
RoHS Complaints(2002/95/EC)
Application
For general purpose internal wiring of electronic and electrical equipment, where exposed to oil at a temperature not exceeding 60°C or 80°C.
UL1028 600V 105°C
|
Part
No. |
Conductor
type |
Conductor |
Insulation |
Max
Resistance
At 20°C |
Min Insulation
Resistance
At 20°C |
Dielectric
Strength
AC 1min |
Specification
Sheet |
|
Spec |
No. |
Nom.
Dia. |
Nom.
Thick. |
Nom.
Dia |
|
AWG |
mm |
mm |
mm |
mm |
Ω /km |
MΩ . km |
V |
|
125301 |
Stranded
Conductor |
22 |
17/0.16 |
0.76 |
1.19 |
3.14 |
55.0 |
15 |
2000 |
|
|
125302 |
20 |
26/.16 |
0.94 |
1.19 |
3.22 |
34.6 |
|
|
125303 |
18 |
41/0.16 |
1.18 |
1.19 |
3.56 |
21.8 |
|
|
125304 |
16 |
26/0.254 |
1.49 |
1.19 |
3.87 |
13.7 |
|
|
125305 |
14 |
41/0.254 |
1.88 |
1.19 |
4.26 |
8.62 |
|
|
125306 |
12 |
65/0.254 |
2.37 |
1.19 |
4.75 |
5.43 |
|
|
125307 |
10 |
105/0.25 |
3.40 |
1.19 |
5.78 |
3.41 |
|
|
125308 |
49/0.37 |
3.38 |
1.19 |
5.76 |
3.41 |
|
|
125309 |
8 |
168/0.254 |
4.31 |
1.19 |
6.69 |
2.16 |
| |
|
|
|
|
|
