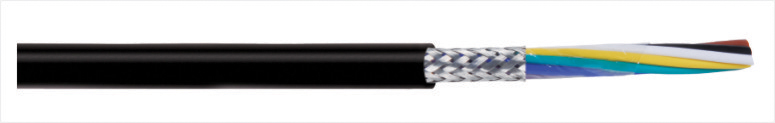

Spiral PVC/PVC 300V 80℃

Product Description

Rated Voltage  300V ,  Rated Temperature  80°C

Inner Conductor:  Tinned Copper

Insulation: Color-Coded PVC,

Color Code: 1-Black, 2-Red,3-White,4-Green, 5-Yellow,6-Blue .

Wrap: Overall Clear Polyester tape overlapped

Shield: Spiral Wrapped Bare Copper(Coverage 95%).

Jacket: PVC



PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.



*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000



Application

For audio, control and instrumentation equipment and appliances.



Specifications according to UL1108, UL2095     300V  80°C

Part

No.

Belden

Part No.

Alpha

Part No.

Carol

Part No.

Conductor

(Stranded)

No. of

Conductor

Insulation

Thickness

Jacket

Specification

Sheet

Nom.

Thick

Nom.

Dia.

mm

mm

mm

133101



2254/11



22AWG(7/0.254mm)

1

0.41

0.50

3.00



133102

8737

2254



22AWG(7/0.254mm)

2

0.41

0.50

4.30



133103



2254/3



22AWG(7/0.254mm)

3

0.41

0.50

4.80



133104



2254/4



22AWG(7/0.254mm)

4

0.41

0.50

5.0



133105



2254/6



22AWG(7/0.254mm)

6

0.41

0.50

5.80



133106



2256/11



20AWG(7/032mm)

1

0.41

0.50

3.30



133107



2256



20AWG(7/032mm)

2

0.41

0.50

4.80



133108



2256/3



20AWG(7/032mm)

3

0.41

0.50

5.30



133109



2256/4



20AWG(7/032mm)

4

0.41

0.50

5.70



133110



2256/6



20AWG(7/032mm)

6

0.41

0.50

6.70



133111



2258/11



18AWG(16/0.254mm)

1

0.41

0.50

3.60



133112

8790

2258



18AWG(16/0.254mm)

2

0.41

0.50

5.30



133113

8791

2258/3



18AWG(16/0.254mm)

3

0.41

0.50

5.80



133114



2258/4



18AWG(16/0.254mm)

4

0.41

0.50

6.40



133115

8780

2260



16AWG(26/0.254mm)

2

0.41

0.50

6.10



133116



2260/3



16AWG(26/0.254mm)

3

0.50

0.50

6.60
