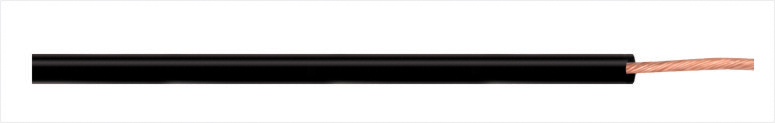

Product Description
Rated voltage: not specified, Rated temperature: 100°C.
Stranded, bare copper conductor, rang from 0.35mm2 to 40 mm2 .
Sole PVC insulation for automobile.
Passes NFC 32- 070 vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis, heat, cold, abrasions and oils.
RoHS Complaints(2002/95/EC)
Application
For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition.
T2 100°C
|
Part No. |
Style |
Conductor |
Insulation |
Max
Resistance
At 20°C |
Dielectric
Strength
AC 30 min |
Specification
Sheet |
|
Nom.
Area |
No./mm |
Dia. |
Min.
Thick. |
Average.
Dia. |
|
mm2 |
mm |
mm |
mm |
mm |
Ω /km |
V |
|
200801 |
T2 |
0.35 |
7/0.25 |
0.75 |
0.22 |
1.28 -1.40 |
55.90 |
1000 |
 |
|
200802 |
0.60 |
12/0.25 |
1.00 |
0.28 |
1.76 -1.90 |
33.00 |
|
|
200803 |
1.00 |
19/0.25 |
1.25 |
0.30 |
1.99 -2.15 |
19.50 |
|
|
200804 |
1.40 |
27/0.25 |
1.50 |
0.32 |
2.25-2.40 |
13.90 |
|
|
200805 |
2.00 |
37/0.25 |
1.75 |
0.36 |
2.62 -2.80 |
10.00 |
|
|
200806 |
3.00 |
45/0.30 |
2.30 |
0.40 |
3.25 -3.45 |
6.06 |
|
|
200807 |
4.00 |
56/0.30 |
2.70 |
0.40 |
3.70 -3.90 |
4.95 |
|
|
200808 |
5.00 |
70/0.30 |
2.80 |
0.40 |
3.80 -4.00 |
3.94 |
|
|
200809 |
7.00 |
105/0.30 |
3.40 |
0.48 |
4.76 -5.00 |
2.72 |
|
|
200810 |
10.00 |
144/0.30 |
4.10 |
0.48 |
5.75 -6.00 |
1.91 |
|
|
200811 |
16.00 |
126/0.40 |
5.10 |
0.52 |
6.75 -7.00 |
1.21 |
|
|
200812 |
20.00 |
150/0.40 |
5.60 |
0.52 |
7.25 -7.50 |
0.99 |
|
