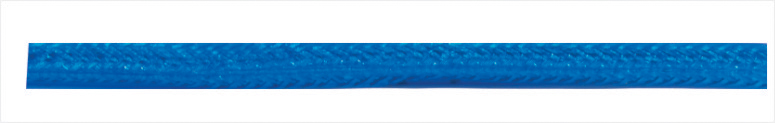

Microphone Cable

Product Description

Conductor: stranded bare OFC(oxygen free copper)

Insulation: solid PVC;

Shield: Aluminum/Polyester Foil and stranded OFC spiral wrap or braiding;

Jacket: Soft and highly flexible PVC, transparent ,translucent or solid;



Application

For interconnection of microphone, audio/video equipment.



Packing

Coil or plastic spool is available



Microphone Cable

Part

No.

Conductor

Number

Conductor

Insulation

 Shield

Filler

Jacket

Specification

Sheet

mm

mm

170501

1

18/0.12mm OFC

1.30

48/0.12mm OFC Spiral Wrap

Cotton Yarn

5.0 PVC



170502

1

30/0.12mm OFC

1.80

Al/PET foil & 64/0.12mm OFC braiding

Cotton Yarn

5.8 PVC



170503

2

10/0.12mm OFC

1.30

Al/PET foil & 64/0.12mm OFC braiding

Cotton Yarn

5.0 PVC



170504

2

18/0.12mm OFC

1.30

Al/PET foil & 80/0.12mm OFC braiding

Cotton Yarn

6.0 PVC



170505

2

20/0.12mm OFC

1.60

Al/PET foil & 96/0.12mm OFC braiding

Cotton Yarn

5.3PVC



170506

3

10/0.12mm OFC

1.30

Al/PET foil & 80/0.12mm OFC braiding

Cotton Yarn

6.0 PVC



170507

3

18/0.12mm OFC

1.30

Al/PET foil & 80/0.12mm OFC braiding

Cotton Yarn

6.0PVC
