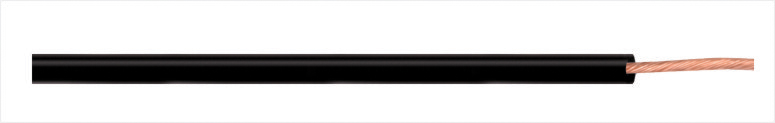

STT

Product Description

Rated voltage: ≤50V, Rated temperature: 105°C.

Stranded, tinned or bare copper conductor, 6-4/0AWG

Sole PVC  insulation for automobile.

Passes SAE J 1127-95 slant flame test.

Uniform insulation thickness of wire to ensure easy stripping and cutting .

Resistant to acids, alkalis, heat, cold, abrasions and oils.



RoHS Complaints(2002/95/EC)



Application

This low-voltage cable is suitable for rated voltage not more than 50V rms vehicles electrical systems.



                                                                                                                                                           STT  105°C  ≤50V

Part No.

Style

Conductor

Insulation

Max

Resistance

At  20°C

Dielectric

Strength

AC 1 min

Specification

Sheet

Spec

Nom.

area

No./mm

Dia.

Min.

Thick.

Max.

Dia.

AWG

mm2

mm

mm

mm

mm

Ω/KM

V

200601

STT

6

13

124/0.37

5.45

0.76

7.80

1.39

1000



200602

4

19

196/0.37

6.78

0.78

9.50

0.88



200603

2

32

312/0.37

9.05

0.78

11.00

0.55
