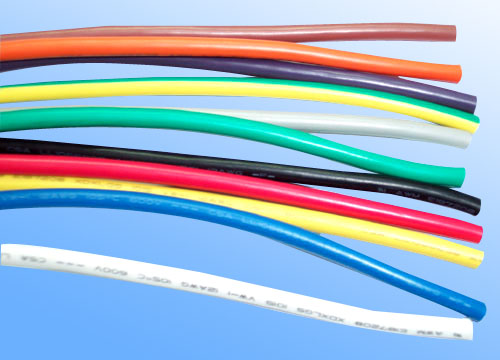

Product Description
Rated Voltage:1000V, Rated temperature: 90°C.
Conductor: stranded to bare, stranded or solid copper, range from 30 AWG to 9 AWG.
Insulation: color-coded Lead Free/RoHS* PVC.
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis, oils, moisture and fungi.
RoHS Complaints(2002/95/EC)
Application
For general purpose internal wiring of electronic and electrical equipment, where exposed to oil at a temperature not exceeding 60°C or 80°C.
UL1032 1000V 90°C
|
Part
No. |
Conductor
type |
Conductor |
Insulation |
Max
Resistance
At 20°C |
Min Insulation
Resistance
At 20°C |
Dielectric
Strength
AC 1min |
Specification
Sheet |
|
Spec |
No. |
Nom.
Dia. |
Nom.
Thick. |
Nom.
Dia |
|
AWG |
mm |
mm |
mm |
mm |
Ω /km |
MΩ . km |
V |
|
125401 |
Stranded
Conductor |
30 |
7/0.10 |
0.30 |
0.79 |
1.88 |
354.24 |
15 |
3000 |
|
|
125402 |
28 |
7/0.127 |
0.38 |
0.79 |
1.96 |
223.75 |
|
|
125403 |
26 |
7/0.16 |
0.48 |
0.79 |
2.06 |
139.73 |
|
|
125404 |
24 |
11/0.16 |
0.61 |
0.79 |
2.19 |
93.3 |
|
|
125405 |
22 |
17/0.16 |
0.76 |
0.79 |
2.34 |
55.0 |
|
|
125406 |
20 |
26/0.16 |
0.94 |
0.79 |
2.52 |
34.6 |
|
|
125407 |
18 |
41/0.16 |
1.18 |
0.79 |
2.76 |
21.8 |
|
|
125408 |
16 |
26/0.254 |
1.49 |
0.79 |
3.07 |
13.7 |
|
|
125409 |
14 |
41/0.254 |
1.88 |
0.79 |
3.46 |
8.62 |
|
|
125410 |
12 |
65/0.254 |
2.37 |
0.79 |
3.95 |
5.43 |
|
|
125411 |
10 |
105/0.254 |
3.40 |
0.79 |
4.98 |
3.41 |
|
|
125412 |
49/0.37 |
3.38 |
0.79 |
4.96 |
3.41 |
|
|
