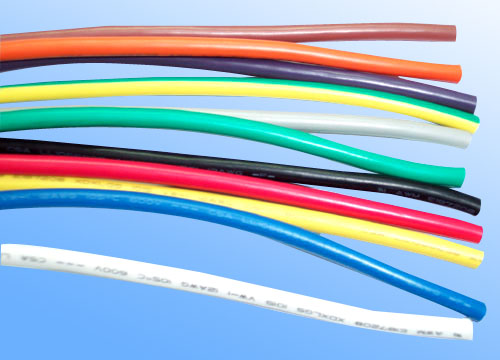

Product Description
Rated Voltage:300V, Rated temperature: 105°C.
Conductor: tinned or bare, stranded or solid copper, range from 30AWG to 16AWG.
Insulation: Lead Free/RoHS* XLPVC (irradiated).
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis, oils, moisture and fungi.
*Note:
Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
For general purpose internal wiring of electronic and electrical equipment ,such as: wiring of dryers, toasters, transformers.
|
Part
No. |
Conductor
type |
Conductor |
Insulation |
Max
Resistance
At 20°C |
Min Insulation
Resistance
At 20°C |
Dielectric
Strength
AC 1min |
Specification
Sheet |
|
Spec |
No. |
Nom.
Dia. |
Nom.
Thick. |
Nom.
Dia |
|
AWG |
mm |
mm |
mm |
mm |
Ω /km |
MΩ . km |
V |
|
125901 |
Stranded
Conductor |
30 |
7/0.10 |
0.30 |
0.41 |
1.12 |
354.24 |
20
|
2000 |
 |
|
125902 |
28 |
7/0.127 |
0.38 |
0.41 |
1.20 |
223.75 |
 |
|
125903 |
26 |
7/0.16 |
0.38 |
0.41 |
1.30 |
136.73 |
 |
|
125904 |
24 |
11/0.16 |
0.61 |
0.41 |
1.43 |
93.30 |
 |
|
125905 |
22 |
17/0.16 |
0.76 |
0.41 |
1.58 |
55.00 |
 |
|
125906 |
20 |
26/0.16 |
0.94 |
0.41 |
1.76 |
34.60 |
 |
|
125907 |
18 |
41/0.16 |
1.18 |
0.41 |
2.00 |
21.80 |
 |
|
125908 |
16 |
26/0.254 |
1.49 |
0.41 |
2.31 |
13.70 |
 |
|
125909 |
Solid
Conductor |
26 |
1/0.404 |
0.404 |
0.41 |
1.22 |
142.79 |
20 |
2000 |
 |
|
125910 |
24 |
1/0.511 |
0.511 |
0.41 |
1.33 |
89.39 |
 |
|
125911 |
22 |
1/0.643 |
0.643 |
0.41 |
1.46 |
54.30 |
 |
|
125912 |
20 |
1/1.813 |
0.813 |
0.41 |
1.63 |
33.90 |
 |
|
125913 |
18 |
1/1.024 |
1.024 |
0.41 |
1.84 |
21.40 |
 |
|
125914 |
Overall
Tinned |
26 |
7/0.16 |
0.48 |
0.41 |
1.30 |
139.73 |
20 |
2000 |
 |
|
125915 |
24 |
7/0.203 |
0.61 |
0.41 |
1.43 |
86.00 |
 |
|
125916 |
22 |
7/0.254 |
0.76 |
0.41 |
1.58 |
54.80 |
 |
|
