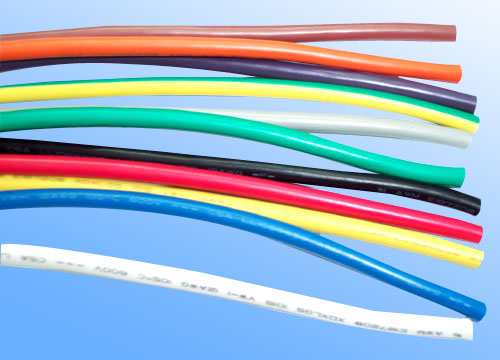

Product Description
Rated Voltage: not specified, Rated temperature: 80°C.
Conductor: tinned or bare , stranded or solid copper, range from 30AWG to 16AWG.
Insulation: Lead Free/RoHS* SR-PVC .
Shield: tinned or bare copper wire spiral.
Jacket: Lead Free/RoHS* PVC.
Passes UL VW-1SC & CSA FT1 vertical flame test.
*Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
For use In internal wiring of recording ,studios, sound systems and electronic circuits.
|
Part
No. |
Conductor
type |
Conductor |
Insulation |
Spiral shield |
Jacket |
Max
Resistance
At 20°C |
Min Insulation
Resistance
At 20°C |
Dielectric
Strength
AC 1min |
Specification
Sheet |
|
Spec |
No. |
Nom.
Dia. |
Nom.
Thick. |
Nom.
Dia. |
Single
Dia. |
Nom.
Dia. |
Nom.
Thick. |
Nom.
Dia. |
|
AWG |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
Ω /km |
MΩ . km |
V |
|
126101 |
Stranded
Conductor |
30 |
7/0.10 |
0.30 |
0.25 |
0.80 |
0.10 |
1.00 |
0.33 |
1.66 |
354.24 |
10 |
500 |
|
|
126102 |
28 |
7/0.127 |
0.38 |
0.25 |
0.88 |
0.10 |
1.08 |
0.33 |
1.74 |
223.75 |
|
|
126103 |
26 |
7/0.16 |
0.48 |
0.25 |
0.88 |
0.10 |
1.18 |
0.33 |
1.84 |
139.73 |
|
|
126104 |
24 |
11/0.16 |
0.61 |
0.25 |
0.98 |
0.10 |
1.31 |
0.33 |
1.97 |
93.3 |
|
|
126105 |
22 |
17/0.16 |
0.76 |
0.30 |
1.11 |
0.10 |
1.56 |
0.33 |
2.22 |
55.0 |
|
|
126106 |
20 |
26/0.16 |
0.94 |
0.35 |
1.36 |
0.10 |
1.84 |
0.33 |
2.50 |
34.6 |
|
|
126107 |
18 |
41/0.16 |
1.18 |
0.40 |
1.98 |
0.12 |
2.22 |
0.33 |
2.92 |
21.8 |
|
|
126108 |
16 |
26/0.254 |
1.49 |
0.40 |
2.29 |
0.12 |
2.53 |
0.33 |
3.23 |
13.7 |
|
|
