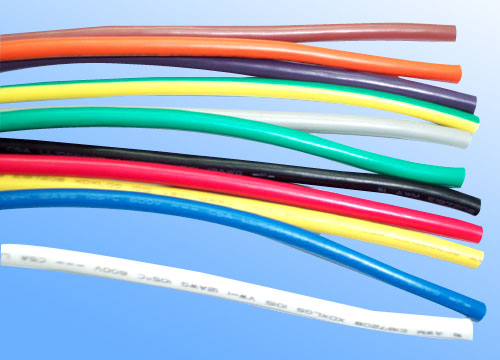

Product Description
Rated Voltage:300V, Rated temperature: 105°C.
Conductor: tinned or bare, stranded or solid copper, range from 32 AWG to 2AWG.
Insulation: color ?coded Lead Free/RoHS* PVC.
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis, oils, moisture and fungi.
*Note:
Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
For general purpose internal wiring of electronic and electrical and equipment, where not subjected to movement or mechanical damage.
|
Part
No. |
Conductor
type |
Conductor |
Insulation |
Max
Resistance
At 20°C |
Min Insulation
Resistance
At 20°C |
Dielectric
Strength
AC 1min |
Specification
Sheet |
|
Spec |
No. |
Nom.
Dia. |
Nom.
Thick. |
Nom.
Dia |
|
AWG |
mm |
mm |
mm |
mm |
Ω /km |
MΩ . km |
V |
|
126201 |
Stranded
Conductor |
30 |
7/0.10 |
0.30 |
0.43 |
1.16 |
354.24 |
20 |
2000 |
 |
|
126202 |
28 |
7/0.127 |
0.38 |
0.43 |
1.24 |
223.75 |
|
|
126203 |
26 |
7/0.16 |
0.48 |
0.43 |
1.34 |
136.73 |
|
|
126204 |
24 |
11/0.16 |
0.61 |
0.43 |
1.47 |
93.30 |
|
|
126205 |
22 |
17/0.16 |
0.76 |
0.43 |
1.62 |
55.00 |
|
|
126206 |
20 |
26/0.16 |
0.94 |
0.43 |
1.80 |
34.60 |
|
|
126207 |
18 |
41/0.16 |
1.18 |
0.43 |
2.04 |
21.80 |
|
|
126208 |
16 |
26/0.254 |
1.49 |
0.43 |
2.35 |
13.70 |
|
|
126209 |
14 |
41/0.254 |
1.88 |
0.45 |
2.78 |
8.62 |
|
|
126210 |
12 |
65/0.254 |
2.37 |
0.45 |
3.27 |
5.43 |
|
|
126211 |
10 |
105/0.254 |
3.40 |
0.48 |
4.36 |
3.41 |
 |
|
126212 |
49/0.37 |
3.38 |
0.48 |
4.34 |
3.41 |
|
|
