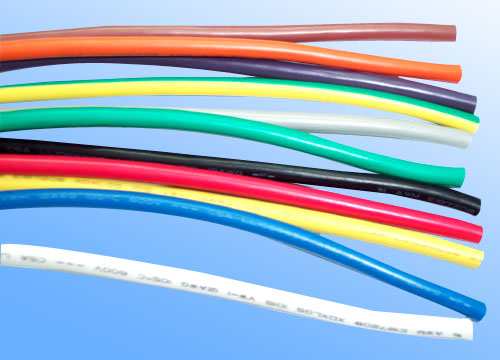

Product Description
Rated Voltage:600V, Rated temperature: 105°C.
Conductor: tinned or bare, stranded or solid copper, range from 30AWG to 16AWG.
Insulation: Lead Free/RoHS* PVC .
Covering: PVC Lead Free* thickness from 0.127 to 1.016 mm.
Passes UL VW ?I &CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis, oils, moisture and fungi.
*Note:
Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
Internal wiring of electronic and electrical equipment .
|
Part
No. |
Conductor type |
Conductor |
Insulation |
Max
Resistance
At 20°C |
Min Insulation
Resistance
At 20°C |
Dielectric
Strength
AC 1min |
Specification
Sheet |
|
Spec |
No. |
Nom.
Dia. |
Primary
Nom.
Thick. |
Nom.
Dia. |
Secondary
Nom.
Thick |
Nom.
Dia |
|
AWG |
mm |
mm |
mm |
mm |
mm |
mm |
Ω /km |
MΩ . km |
V |
|
126401 |
Stranded
Conductor |
30 |
7/0.10 |
0.30 |
0.79 |
1.88 |
0.40 |
2.68 |
354.24 |
15 |
2000 |
|
|
126402 |
28 |
7/0.127 |
0.38 |
0.79 |
1.98 |
0.40 |
2.76 |
223.75 |
|
|
126403 |
26 |
7/0.16 |
0.48 |
0.79 |
2.06 |
0.40 |
2.86 |
136.73 |
|
|
126404 |
24 |
11/0.16 |
0.61 |
0.79 |
2.19 |
0.40 |
2.99 |
93.3 |
|
|
126405 |
22 |
17/0.16 |
0.76 |
0.79 |
2.34 |
0.40 |
3.14 |
55.0 |
|
|
126406 |
20 |
26/0.16 |
0.94 |
0.79 |
2.52 |
0.40 |
3.32 |
34.6 |
|
|
126407 |
18 |
41/0.16 |
1.18 |
0.79 |
2.76 |
0.40 |
3.56 |
21.8 |
|
|
126408 |
16 |
26/0.254 |
1.49 |
0.79 |
3.07 |
0.40 |
3.87 |
13.7 |
|
|
126409 |
Solid
Conductor |
28 |
1/0.32 |
0.32 |
0.79 |
1.90 |
0.40 |
2.70 |
227.39 |
15 |
2000 |
|
|
126410 |
26 |
1/0.404 |
0.404 |
0.79 |
1.98 |
0.40 |
2.78 |
142.79 |
|
|
126411 |
24 |
1/0.511 |
0.511 |
0.79 |
2.09 |
0.40 |
2.89 |
89.39 |
|
|
126412 |
22 |
1/0.643 |
0.643 |
0.79 |
2.22 |
0.40 |
3.02 |
54.3 |
|
|
126413 |
20 |
1/1.813 |
0.813 |
0.79 |
2.39 |
0.40 |
3.19 |
33.9 |
|
|
126414 |
18 |
1/1.024 |
1.024 |
0.79 |
2.60 |
0.40 |
3.40 |
21.4 |
|
|
126415 |
16 |
1/1.29 |
1.29 |
0.79 |
2.87 |
0.40 |
3.67 |
13.5 |
 |
|
