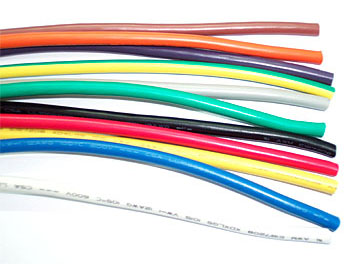

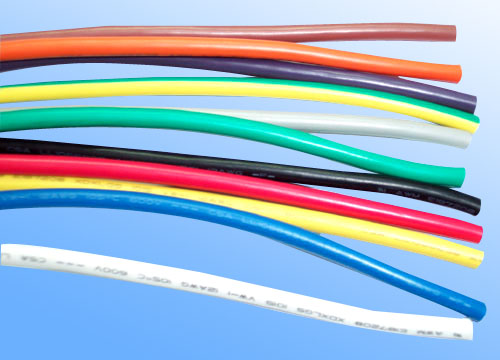

UL1618 RoHS

Product Description

Rated Voltage:300V, Rated temperature: 80°C.

Conductor: tinned or bare, stranded or solid copper, range from30AWG to 16AWG.

Insulation: Lead Free/RoHS* PVC .

Covering: Lead Free/RoHS* PVC  thickness from 0.127 to 1.127 mm.

Passes UL VW ?I &CSA FT1 vertical flame test.

Uniform insulation thickness of wire to ensure easy stripping and cutting .

Resistant to acids, alkalis, oils, moisture and fungi.



*Note:

Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000



Application

Internal wiring of electronic and electrical equipment .

Part

No.

Conductor

type

Conductor

Insulation

Max

Resistance

At  20°C

Min Insulation

Resistance

At  20°C

Dielectric

Strength

AC 1min

Specification

Sheet

Spec

No.

Dia.

Primary

Nom.

Thick.

Nom.

Dia.

Secondary

Nom.

Thick

Nom.

Dia.

AWG

mm

mm

mm

mm

mm

mm

Ω /km

MΩ . km

V

126501









Stranded

Conductor

30

7/0.10

0.30

0.41

1.12

0.40

1.92

354.24



15



1500



126502

28

7/0.127

0.38

0.41

1.20

0.40

2.00

223.75



126503

26

7/0.16

0.48

0.41

1.30

0.40

2.10

136.73



126504

24

11/0.16

0.61

0.41

1.43

0.40

2.23

93.3



126505

22

17/0.16

0.76

0.41

1.58

0.40

2.38

55.0



126506

20

26/0.16

0.94

0.41

1.76

0.40

2.56

34.6



126507

18

41/0.16

1.18

0.41

2.00

0.40

2.80

21.8



126508

16

26/0.254

1.49

0.41

2.31

0.40

3.11

13.7



126509







Solid

Conductor

28

1/0.32

0.32

0.41

1.14

0.40

1.94

227.39

15

1500



126510

26

1/0.404

0.404

0.41

1.22

0.40

2.02

142.79



126511

24

1/0.511

0.511

0.41

1.33

0.40

2.13

89.39



126512

22

1/0.643

0.643

0.41

1.46

0.40

2.26

54.3



126513

20

1/1.813

0.813

0.41

1.63

0.40

2.43

33.9



126514

18

1/1.024

1.024

0.41

1.84

0.40

2.64

21.4



126515

16

1/1.29

1.29

0.41

2.11

0.40

2.91

13.5
