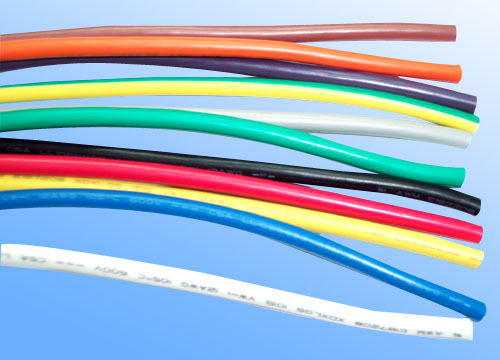

Product Description
Rated Voltage:300V, Rated temperature: 105°C.
Conductor: tinned or bare, stranded or solid copper, range from30AWG to 16AWG.
Insulation: Lead Free/RoHS* XLPVC (irradiated) .
Covering: Lead Free/RoHS* PVC thickness from 0.127 to 1.016mm.
Passes UL VW ?I &CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis, oils, moisture and fungi.
*Note:
Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
Internal wiring of electronic and electrical equipment .
|
Part
No. |
Conductor type |
Conductor |
Insulation |
Max
Resistance
At 20°C |
Min Insulation
Resistance
At 20°C |
Dielectric
Strength
AC 1min |
Specification
Sheet |
|
Spec |
No. |
Nom.
Dia. |
Primary
Nom.
Thick. |
Nom.
Dia. |
Secondary
Nom.
Thick |
Nom.
Dia. |
|
AWG |
mm |
mm |
mm |
mm |
mm |
mm |
Ω /km |
MΩ . km |
V |
|
126601 |
Stranded
Conductor |
30 |
7/0.10 |
0.30 |
0.48 |
1.26 |
0.48 |
2.22 |
354.24 |
20 |
1500 |
|
|
126602 |
28 |
7/0.127 |
0.38 |
0.48 |
1.34 |
0.48 |
2.30 |
223.75 |
|
|
126603 |
26 |
7/0.16 |
0.48 |
0.48 |
1.44 |
0.48 |
2.40 |
136.73 |
|
|
126604 |
24 |
11/0.16 |
0.61 |
0.48 |
1.57 |
0.48 |
2.53 |
93.3 |
|
|
126605 |
22 |
17/0.16 |
0.76 |
0.46 |
1.68 |
0.46 |
2.60 |
55.0 |
|
|
126606 |
20 |
26/0.16 |
0.94 |
0.48 |
1.90 |
0.45 |
2.80 |
34.6 |
|
|
126607 |
18 |
41/0.16 |
1.18 |
0.39 |
1.96 |
0.48 |
2.92 |
21.8 |
|
|
126608 |
16 |
26/0.254 |
1.49 |
0.48 |
2.45 |
0.48 |
3.41 |
13.7 |
|
|
126609 |
Solid
Conductor |
28 |
1/0.32 |
0.32 |
0.48 |
1.28 |
0.48 |
2.24 |
227.39 |
20 |
1500 |
|
|
126610 |
26 |
1/0.404 |
0.404 |
0.48 |
1.37 |
0.48 |
2.33 |
142.79 |
|
|
126611 |
24 |
1/0.511 |
0.511 |
0.48 |
1.47 |
0.48 |
2.43 |
89.39 |
|
|
126612 |
22 |
1/0.643 |
0.643 |
0.48 |
1.61 |
0.48 |
2.57 |
54.3 |
 |
|
126613 |
20 |
1/1.813 |
0.813 |
0.48 |
1.78 |
0.48 |
2.74 |
33.9 |
|
|
126614 |
18 |
1/1.024 |
1.024 |
0.48 |
1.99 |
0.48 |
2.95 |
21.4 |
 |
|
126615 |
16 |
1/1.29 |
1.29 |
0.48 |
2.25 |
0.48 |
3.21 |
13.5 |
|
|
