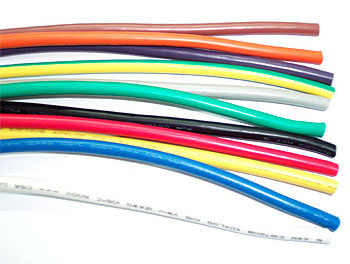

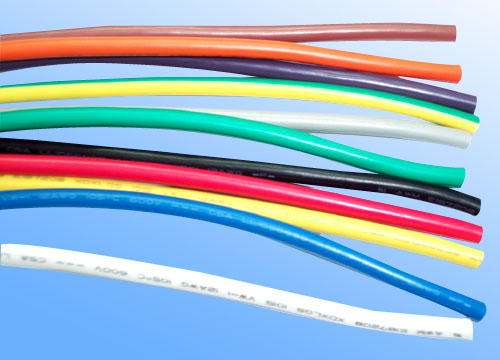

Product Description
Rated Voltage:300V, Rated temperature: 105°C.
Tinned or bare, stranded or solid copper conductor, rang from 30 AWG to 16AWG.
Color- coded Lead Free/RoHS PVC insulation.
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis, oils, moisture and fungi.
*Note:
Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000
Application
Internal wiring of electronic bookkeeping, accounting, time-recording machines, electronic, medical or dental equipment, protection is required where
mechanical damage is possible.
|
Part No. |
Conductor Typeonu |
Conductorctor |
In Insulationsulation |
Max Resistance At 20°C t |
Min Insulation
Resistance
At 20°C in |
Dielectric
Strength
AC 1min |
Specification
Sheet |
|
Spec |
No.No. |
DiDia.a. |
NNom. Thick. Thi |
nom. Dia.om. |
|
AWG |
mmmm |
mmmm |
mmmm |
mm |
Ω /km |
MΩ . km |
V |
|
127401 |
Stranded
Conductor |
30 |
7/0.10 |
0.30 |
0.33 |
0.96 |
354.24 |
15 |
1500 |
 |
|
127402 |
28 |
7/0.127 |
0.38 |
0.33 |
1.04 |
223.75 |
|
|
127403 |
26 |
7/0.16 |
0.48 |
0.33 |
1.14 |
136.73 |
|
|
127404 |
24 |
11/0.16 |
0.61 |
0.33 |
1.27 |
93.3 |
 |
|
127405 |
22 |
17/0.16 |
0.76 |
0.33 |
1.42 |
55.0 |
 |
|
127406 |
20 |
26/0.16 |
0.94 |
0.35 |
1.64 |
34.6 |
|
|
127407 |
18 |
41/0.16 |
1.18 |
0.40 |
1.98 |
21.8 |
|
|
127408 |
16 |
26/0.254 |
1.49 |
0.40 |
2.29 |
13.7 |
|
|
127409 |
Solid
Conductor |
26 |
1/0.404 |
0.404 |
0.33 |
1.07 |
142.79 |
15 |
1500 |
|
|
127410 |
24 |
1/0.511 |
0.511 |
0.33 |
1.17 |
89.39 |
|
|
127411 |
22 |
1/0.643 |
0.643 |
0.33 |
1.31 |
54.3 |
|
|
127412 |
20 |
1/1.813 |
0.813 |
0.35 |
1.52 |
33.9 |
|
|
127413 |
18 |
1/1.024 |
1.024 |
0.40 |
1.83 |
21.4 |
|
|
122414 |
16 |
1/1.29 |
1.29 |
0.40 |
2.09 |
13.5 |
| |
