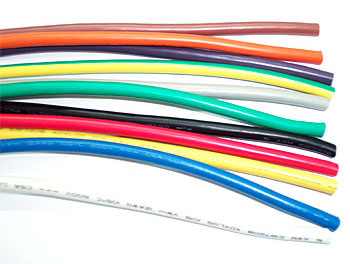

Product Description
Rated Voltage:600V, Rated temperature: 125°C.
Conductor: tinned or bare, stranded or solid copper, range from 26 AWG to 9 AWG.
Insulation: Lead Free XLPE (irradiated).
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting .
Resistant to acids, alkalis, oils, moisture and fungi.
*Note:
Lead Free comply with European Standard EN 71 Part3: 1994 + A1. 2000
Application
For general purpose internal wiring of electronic and electrical equipment even in high temperature condition.
|
Part No. |
Conductor type |
Conductor |
Insulation |
Max
Resistance
At 20°C |
Min Insulation
Resistance
At 20°C |
Dielectric
Strength
AC 1min |
Specification
Sheet |
|
Spec |
No. |
Nom. Dia. |
Nom. Thick. |
Nom. Dia |
|
AWG |
mm |
mm |
mm |
mm |
Ω /km |
MΩ . km |
V |
|
126701 |
Stranded
Conductor |
26 |
7/0.16 |
0.48 |
0.79 |
2.06 |
139.73 |
1500
|
2000 |
 |
|
126702 |
24 |
11/0.16 |
0.61 |
0.79 |
2.19 |
93.3 |
|
|
126703 |
22 |
17/0.16 |
0.76 |
0.79 |
2.34 |
55.0 |
|
|
126704 |
20 |
26/0.16 |
0.94 |
0.79 |
2.52 |
34.6 |
|
|
126705 |
18 |
41/0.16 |
1.18 |
0.79 |
2.76 |
21.8 |
|
|
126706 |
16 |
26/0.254 |
1.49 |
0.79 |
3.07 |
13.7 |
 |
|
126707 |
14 |
41/0.254 |
1.88 |
0.79 |
3.46 |
8.62 |
 |
|
126708 |
12 |
65/0.254 |
2.37 |
0.79 |
3.95 |
5.43 |
|
|
126709 |
10 |
105/0.254 |
3.40 |
0.79 |
4.98 |
3.41 |
1000 |
|
|
126710 |
49/0.37 |
3.38 |
0.79 |
4.96 |
3.41 |
| |
