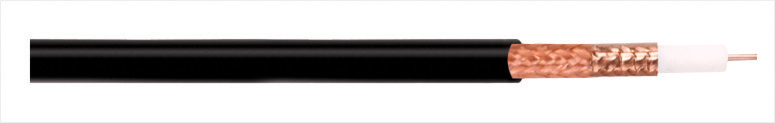

Product Description
Inner Conductor: solid Bare Copper
Insulation: Foam PE
Outer Conductor: CU foil or CU/PET/CU (copper-PET-copper laminated) foil and Bare Copper braiding , various of coverage Or Welded copper tube;
Jacket: PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) available;
RoHS Complaints(2002/95/EC)
Application
For antenna cables for terrestrial and satellite reception in fixed installations, in distribution system lower attenuation values are used and for outdoor lead-in installations the versions with PE sheath.
CATV?Distribution Cables
|
Part No. |
Specifications |
Inner Conductor |
Dielectric |
Outer Conductor |
Jacket |
Specification
Sheet |
|
MTR. |
mm. |
Foil |
Braid |
Coverage |
MTR. |
Nom.
Dia. |
|
mm |
|
114401 |
Coax 6CT17S |
BC |
1/1.7 |
Foam PE |
Welded copper tube |
PE |
10.50 |
 |
|
114402 |
Coax 6CT17A |
BC |
1/1.7 |
Foam PE |
CU/PET/CU |
BC |
60% |
PVC/PE |
10.50 |
|
|
114403 |
Coax 6CT17E |
BC |
1/1.7 |
Foam PE |
CU foil |
BC |
60% |
PVC/PE |
10.50 |
|
|
114404 |
Coax 6CT15A |
BC |
1/1.55 |
Foam PE |
CU/PET/CU |
BC |
60% |
PVC/PE |
10.10 |
|
|
114405 |
Coax 6CT22S |
BC |
1/2.2 |
Foam PE |
Welded copper tube |
PE |
12.30 |
|
|
114406 |
Coax 4CT22A |
BC |
1/2.2 |
Foam PE |
CU/PET/CU |
BC |
60% |
PE |
12.50 |
|
|
114407 |
C4
CT22A(2.2/8.8) |
BC |
1/2.2 |
Foam PE |
CU/PET/CU |
BC |
60% |
PE |
12.30 |
|
|
114408 |
Coax 4CT22E |
BC |
1/2.2 |
Foam PE |
CU foil |
BC |
60% |
PE |
12.50 |
|
|
114409 |
Coax 3CT33S |
BC |
1/3.3 |
Foam PE |
Welded copper tube |
PE |
17.10 |
|
|
114410 |
Coax 3CT33A |
BC |
1/3.45 |
Foam PE |
CU/PET/CU |
BC |
60% |
PE |
19.30 |
|
|
114411 |
Coax 3CT33E |
BC |
1/3.45 |
Foam PE |
CU foil |
BC |
60% |
PE |
19.30 |
|
|
114412 |
C3 CT33A(3.3/13.5) |
BC |
1/3.3 |
Foam PE |
CU/PET/CU |
BC |
60% |
PE |
17.10 |
|
Note
* BC is bare copper
*CU foil is copper foil
*CU/PET/CU is copper-PET-copper laminated foil |
