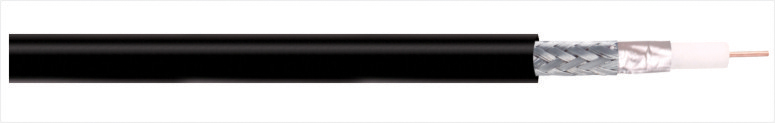

Product Description

Inner Conductor: solid Cu(Bare Copper);

Insulation: Foamed PE by gas injection(physical foamed) or solid PE;

Outer Conductor: Al/PET (aluminum-PET laminated) foil , or Al/PET/Al(aluminum-PET-aluminum laminated) and Cu(Bare Copper) or

Cu-Sn(Tinned Copper) braiding , various of coverage;

Antimigrating: PET foil overlapped;

Jacket: PVC or PE

PE, LSF(Low Smoke & Fume) , LSZH(Low Smoke & Zero Halogen) and Lead Free/RoHS* version is available, too.

* Lead Free/RoHS comply with European Union’s(EU) Restriction of Hazardous Substances & European Standard EN 71 Part3: 1994 + A1. 2000

Application

For TV connection and satellite system.

We can manufacture the other specifications according to your requirements, such as

Meanwhile, we can manufacture with different inner conductor(Cu, CCS, Cu-Sn), different type foil(CuF,  Cu/PET,  Al/PET,  Al/PET/Al ),

different braid(Cu, Cu-Sn, Al), different coverage and different Outer Sheath(PVC, PE, LSZH),  with or without Galvanized Steel Messenger

according to your requirements.

Note

PE: Polyethylene

PEE: Foamed Polyethylene

PEE/PH: Foamed Polyethylene by Gas injection

PVC: Polyethilchloride

Al: Aluminum

Cu: Bare Copper

Cu-Sn: Tinned Copper

CCS: Copper Clad Steel(Copperweld)

PET: Polyester foil

CuF: Overlapped longitudinally Copper foil

Cu/PET: Overlapped longitudinally Copper+PET foil

Al/PET: Overlapped longitudinally Al+PET foil

Al/PET/Al: Overlapped longitudinally AL+PET+AL foil

Ø Nominal Diameter
