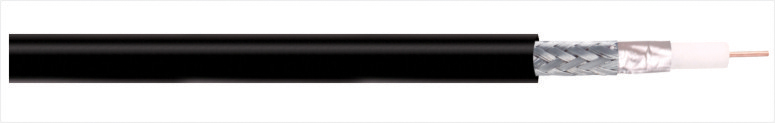

Product Description

Inner Conductor: solid CCS(copper covered steel)conductor;

Insulation: gas expanded PE(physical foam PE);

Outer Conductor:

Dual  shield: foil shield (aluminum-polypropylene laminated tape with overlap) and Al(aluminum) wire braiding or BC(bare copper) wire braiding, various of coverage;

or  Quad shield  [foil shield(bonded aluminum-polypropylene-aluminum laminated tape with overlap), and Al(aluminum) wire braiding, various of coverage, and foil shield(aluminum-polypropylene-aluminum laminated tape with overlap), and Al(aluminum) wire braiding, various of coverage] ;

Jacket: PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) available;

RoHS Complaints(2002/95/EC)

Application

For satellite dish, satellite TV connect;

Flooding and PE jacket for underground;

PVC jacket for general purpose;

FRPVC(Flame Retardant), LSZH(Low Smoke & Zero Halogen) for indoor purpose;

PE jacket for outdoor purpose;

 Note

*BC is bare copper;

*CCS is copper clad steel;

*Al is aluminum;

*Al/P Tape is aluminum-polypropylene laminated tape with overlap;

*FRPVC is flame retardant PVC;

1   Floodant   Flooding and PE jacket
