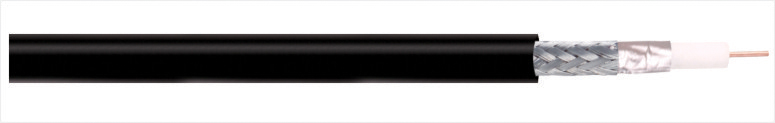

Product Description
Inner Conductor: solid BC(bare copper ) or CCS(copper covered steel)conductor;
Insulation: gas expanded PE(physical foam PE);
Outer Conductor:
Dual shield: foil shield(aluminum-polypropylene laminated tape with overlap) and Al(aluminum) wire braiding, various of coverage;
or Quad shield[foil shield(bonded aluminum-polypropylene-aluminum laminated tape with overlap), and Al(aluminum) wire braiding, various of coverage, and foil shield(aluminum-polypropylene-aluminum laminated tape with overlap), and Al(aluminum) wire braiding, various of coverage] ;
Jacket: PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) available;
RoHS Complaints(2002/95/EC)
Application
For satellite dish, satellite TV connect;
Flooding and PE jacket for underground;
PVC jacket for general purpose;
FRPVC(Flame Retardant), LSZH(Low Smoke & Zero Halogen) version for indoor purpose;
PE jacket for outdoor purpose.
75Ω 6 series RG6
|
Part No. |
Specification |
Inner
conductor |
Dielectric |
Shield |
Jacket |
Specification
Sheet |
|
AWG |
MTR |
MTR. |
Nom.
Dia. |
Foil |
Braid |
Coverage |
MTR. |
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
113211 |
Dual RG6 |
18 |
BC |
Foamed PE |
4.57 |
Al/P
Tape |
Al |
60% |
FRPVC |
0.76 |
6.90 by
14.60 |
|
|
113212 |
Dual RG6 with
Ground wire |
113212 has the same electrical characteristics as 113211 with a 17 AWG CCS ground wire1 |
6.90 by
18.50 |
|
|
113213 |
RG6 |
18 |
CCS |
Foamed PE |
4.57 |
Al/P
Tape |
Al |
40% |
FRPVC |
0.76 |
6.90 |
|
|
113214 |
RG6 |
18 |
BC |
Foamed PE |
4.57 |
Al/P
Tape |
Al |
60% |
FRPVC |
0.76 |
6.90 |
|
|
113215 |
RG6 with
Ground wire |
113215 has the same electrical characteristics as 113214 with a 17 AWG CCS ground wire1 |
6.90by
10.80 |
|
|
113216 |
RG6 |
18 |
CCS |
Foamed PE |
4.57 |
Al/P
Tape |
Al |
60% |
FRPVC |
0.76 |
6.90 |
|
|
113217 |
Dual RG6 |
113217 is dual cable version of 113216 with identical electrical characteristics |
6.90 by
14.60 |
|
|
113218 |
Dual RG6 with
Ground wire |
113218 is dual cable version of 113216 with identical electrical
characteristics and a 17 AWG CCS ground wire1 |
6.90 by
18.50 |
|
|
113219 |
Quad RG6 |
18 |
BC |
Foamed PE |
4.57 |
B-Al/P Tape + 60% Al braid + Al/P Tape +40% Al braid |
FRPVC |
0.83 |
7.60 |
|
|
113220 |
Dual RG6
Quadshield |
113220 is dual cable version of 113219 with identical electrical characteristics |
7.60 by
16.60 |
|
|
113221 |
Dual RG6 Quadshield with Ground wire |
113221 is dual cable version of 113219 with identical electrical characteristics and a 17 AWG CCS ground wire1 |
7.60 by
19.90 |
|
|
113222 |
Dual RG6 Burial |
18 |
CCS |
Foamed PE |
4.57 |
Al/P
Tape |
Al |
60% |
PE |
0.76 |
6.90 |
|
|
113223 |
Dual RG6 Burial with Ground wire |
113223 is dual cable version of 113222 with identical electrica characteristics and a 17 AWG CCS ground wire1 |
6.90 by
18.50 |
|
Note
*BC is bare copper;
*CCS is copper clad steel;
*TC is tinned copper;
*B-Al/P/Al Tape is bonded aluminum-polypropylene-aluminum laminated tape with overlap;
*Al is aluminum;
*Al/P Tape is aluminum-polypropylene laminated tape with overlap;
*FRPVC is flame retardant PVC;
1 Ground Wire Diameter 17AWG(1.14mm)Copper Clad Steel Wire for Single Type. |
