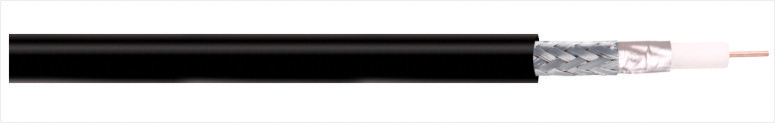

Product Description
Inner Conductor: solid BC(bare copper) conductor;
Insulation: gas expanded PE(physical foam PE) ;
Outer Conductor: BC(bare copper) braiding, various of coverage;
Jacket: PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) available;
RoHS Complaints(2002/95/EC)
Application
For security system connect;
Flooding and PE jacket for underground;
PVC jacket for general purpose;
FRPVC(Flame Retardant), LSZH(Low Smoke & Zero Halogen) and RoHS* version for indoor purpose;
PE jacket for outdoor purpose;
Messenger for aerial purpose;
Dual construction is available.
75Ω RG6
|
Part No. |
Specifications |
Inner
conductor |
Dielectric |
Shield |
Jacket |
Specification
Sheet |
|
AWG |
MTR. |
MTR. |
Nom.
Dia. |
Foil |
Braid |
Coverage |
MTR. |
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
113411 |
RG6P |
18AWG BC and
18AWG pair (7x26) BC |
Foamed PE |
4.57 |
---- |
BC |
95% |
FR PVC |
0.89 |
6.9 by
12.3 |
|
|
113412 |
RG6 |
18 |
BC |
Foamed PE |
4.57 |
---- |
BC |
95% |
FR PVC |
0.89 |
6.9 |
|
|
113413 |
RG59
Burial |
18 |
BC |
Foamed PE |
4.57 |
---- |
BC |
95% |
PE |
0.84 |
6.9
Floodant1 |
|
Note
*BC is bare copper;
*FRPVC is flame retardant PVC;
1 Floodant Flooding and PE jacket; |
