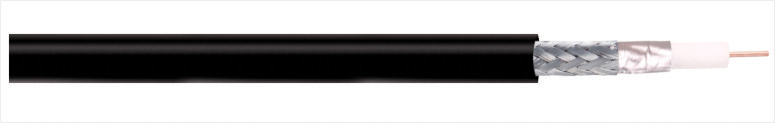

Product Description
Inner Conductor: stranded BC(bare copper ) conductor;
Insulation: solid PE;
Outer Conductor:
Dual shield: foil shield (aluminum-polypropylene-aluminum laminated tape with overlap) and tinned copper wire braiding, various of coverage;
Jacket: PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) available;
RoHS Complaints(2002/95/EC)
Application
For data connect;
Flooding and PE jacket for underground;
PVC jacket for general purpose;
FRPVC(Flame Retardant), LSZH(Low Smoke & Zero Halogen) version for indoor purpose;
PE jacket for outdoor purpose;
50Ω RG8
|
Part No. |
Specifications |
Inner
conductor |
Dielectric |
Shield |
Jacket |
Specification
Sheet |
|
AWG |
MTR |
MTR |
Nom.
Dia. |
Foil |
Braid |
Coverage |
MTR. |
Nom
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
113511 |
RG8 |
13AWG
Stranded(7X21) |
BC |
Solid PE |
7.24 |
Al/P
Tape |
TC |
96% |
FRPVC |
1.10 |
10.40 |
|
|
113512 |
RG8 |
13AWG
Stranded (7X21) |
BC |
Solid PE |
7.24 |
Al/P
Tape |
TC |
96% |
PVC |
1.10 |
10.30 |
|
Note
*BC is bare copper;
*TC is tinned copper;
*Al/P Tape is aluminum-polypropylene laminated tape with overlap;
*FRPVC is flame retardant PVC. |
