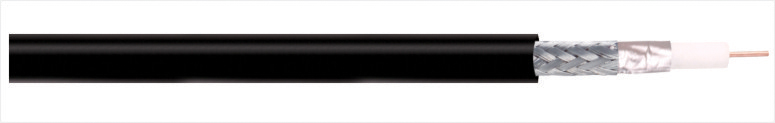

Product Description
Inner Conductor: stranded BC(bare copper) conductor;
Insulation: solid PE;
Outer Conductor:
Dual shield: foil shield (aluminum-polypropylene-aluminum laminated tape with overlap) and tinned copper wire braiding, various of coverage;
Jacket: PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) available;
RoHS Complaints(2002/95/EC)
Application
For data connect;
Flooding and PE jacket for underground;
PVC jacket for general purpose;
FRPVC(Flame Retardant), LSZH(Low Smoke & Zero Halogen) version for indoor purpose;
PE jacket for outdoor purpose;
50Ω RG58
|
Part No. |
Specifications |
Inner
conductor |
Dielectric |
Shield |
Jacket |
Specification
Sheet |
|
AWG |
MTR |
MTR |
Nom.
Dia. |
Foil |
Braid |
Coverage |
MTR. |
Nom
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
113513 |
RG58 |
20AWG
Stranded(19X32) |
TC |
Foamed PE |
2.57 |
Al/P
Tape |
TC |
93% |
FRPVC |
0.66 |
4.60 |
|
|
113514 |
RG58 |
20 |
BC |
Solid PE |
2.95 |
------ |
TC |
95% |
FRPVC |
0.76 |
4.90 |
|
|
113515 |
RG58 |
21AWG
Stranded(19X33) |
TC |
Solid PE |
2.95 |
------ |
TC |
95% |
FRPVC |
0.76 |
4.90 |
|
|
113516 |
RG58 |
21AWG
Stranded(19X33) |
TC |
Solid PE |
2.95 |
------ |
TC |
95% |
PE |
0.69 |
4.90
Floodant1 |
|
|
113517 |
RG58 |
20AWG
Stranded(19X32) |
TC |
Solid PE |
2.90 |
------ |
TC |
95% |
FRPVC |
0.76 |
4.90 |
|
Note
*BC is bare copper;
*TC is tinned copper;
*Al/P Tape is aluminum-polypropylene laminated tape with overlap;
*FRPVC is flame retardant PVC;
1 Floodant Flooding and PE jacket. |
