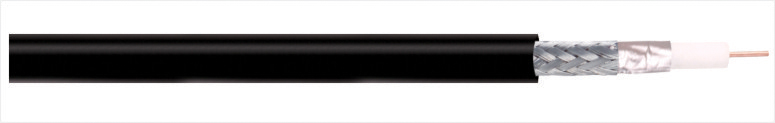

Product Description
Inner Conductor: 14 Gauge[0.064inch (1.63mm) ] CCS(copper covered steel)conductor;
Insulation: gas expanded PE(physical foam PE) ;
Outer Conductor:
Single shield: aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation;
Dual shield: foil shield(aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation) and Al(aluminum) braid wire, various of braiding coverage;
Tri shield: foil shield(aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation),and Al(aluminum) braid wire, and foil shield(aluminum-polypropylene-aluminum laminated tape with overlap);
Quad shield : foil shield(aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation) ,and Al(aluminum) braid wire, and foil shield(aluminum-polypropylene-aluminum laminated tape with overlap), and Al(aluminum) braid wire, various of braiding coverage ;
Jacket: PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) available;
RoHS Complaints(2002/95/EC)
Application
Flooding and PE jacket for underground;
PVC jacket for general purpose;
FRPVC(Flame Retardant), LSZH(Low Smoke & Zero Halogen) and RoHS* version for indoor purpose;
PE jacket for outdoor purpose;
Messenger for aerial purpose;
Dual construction is available.
75Ω 11 Series Drop Cable RG11
|
Part No. |
Specification |
Inner
conductor |
Dielectric |
Shield |
Jacket |
Specification
Sheet |
|
AWG |
MTR |
MTR |
Nom.
Thick |
Foil |
Braid |
Coverage |
Nom.
Thick |
MTR |
Nom.Dia. |
|
mm |
mm |
mm |
|
113081 |
RG11 |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al
Tape |
Al |
60% |
1.07 |
PVC |
10.16 |
|
|
113082 |
RG11 |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al
Tape |
Al |
60% |
1.07 |
FRPVC |
10.16 |
|
|
113083 |
RG11 |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al
Tape |
Al |
60% |
1.07 |
PE |
10.16 |
|
|
113084 |
RG11
Messenger |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al
Tape |
Al |
60% |
1.07 |
PVC |
10.16
Messenger 1 |
|
|
113085 |
RG11
Burial |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al
Tape |
Al |
60% |
1.07 |
PE |
10.16
Floodant 2 |
|
|
113086 |
RG11
Trishield |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al Tape+ Al wire 40%
+ Al/P Tape |
0.99 |
PVC |
10.16 |
|
|
113087 |
RG11
Trishield |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al Tape+ Al wire 40%
+ Al/P Tape |
0.99 |
FRPVC |
10.16 |
|
|
113088 |
RG11
Trishield |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tap |
0.99 |
PE |
10.16 |
|
|
113089 |
RG11
Trishield
Messenger |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tap |
0.99 |
PVC |
10.16
Messenger 1 |
|
|
113090 |
RG11
Trishield
Burial |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tap |
0.99 |
PE |
10.16
Floodant 2 |
|
|
113091 |
RG11
Quadshield |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape + Al wire 40% |
0.94 |
PVC |
10.34 |
|
|
113092 |
RG11
Quadshield |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape + Al wire 40% |
0.94 |
FRPVC |
10.34 |
|
|
113093 |
RG11
Quadshield |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape + Al wire 40% |
0.94 |
PE |
10.34 |
|
|
113094 |
RG11
Quadshield
Messenger |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape + Al wire 40% |
0.94 |
PVC |
10.34
Messenger 1 |
|
|
113095 |
RG11
Quadshield
Burial |
14 |
CCS |
Foamed PE |
7.11 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape + Al wire 40% |
0.94 |
PE |
10.34
Floodant 2 |
|
Note
*CCS is copper clad steel;
*B-Al/P/Al Tape is bonded aluminum-polypropylene-aluminum laminated tape with overlap;
*Al is aluminum;
*Al/P Tape is aluminum-polypropylene laminated tape with overlap;
*FRPVC is flame retardant PVC;
1 Messenger Diameter 0.072”(1.83mm) Galvanized Steel Wire for Single Type, Diameter 0.072”(2.77mm) Galvanized Steel Wire for Dual Type;
2 Floodant Flooding and PE jacket.
|
