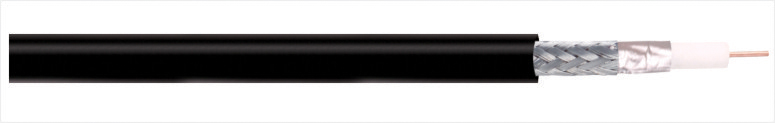

Product Description
Inner Conductor: 16 Gauge[0.05inch (1.29mm) ] CCS(copper covered steel)conductor;
Insulation: gas expanded PE(physical foam PE) ;
Outer Conductor:
Single shield: aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation;
Dual shield: foil shield(aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation) and Al(aluminum) braid wire, various of braiding coverage;
Tri shield: foil shield(aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation),and Al(aluminum) braid wire, and foil shield(aluminum-polypropylene-aluminum laminated tape with overlap);
Quad shield: foil shield(aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation) ,and Al(aluminum) braid wire, and foil shield(aluminum-polypropylene-aluminum laminated tape with overlap), and Al(aluminum) braid wire, various of braiding coverage ;
Jacket: PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) available;
RoHS Complaints(2002/95/EC)
Application
Flooding and PE jacket for underground;
PVC jacket for general purpose;
FRPVC(Flame Retardant), LSZH(Low Smoke & Zero Halogen) and RoHS* version for indoor purpose;
PE jacket for outdoor purpose;
Messenger for aerial purpose
Dual construction is available .
75Ω 7 Series Drop Cable RG7
|
Part No. |
Specification |
Inner
conductor |
Dielectric |
Shield |
Jacket |
Specification
Sheet |
|
AWG |
MTR |
MTR |
Nom.
Dia |
Foil |
Braid |
Coverage |
Nom.
Thick |
MTR |
Nom. Dia. |
|
mm |
mm |
mm |
|
113051 |
RG7 |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al
Tape |
Al |
60% |
0.76 |
PVC |
8.13 |
 |
|
113052 |
RG7 |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al
Tape |
Al |
60% |
0.76 |
FRPVC |
8.13 |
|
|
113053 |
RG7 |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al
Tape |
Al |
60% |
0.76 |
PE |
8.13 |
|
|
113054 |
RG7
Messenger |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al
Tape |
Al |
60% |
0.76 |
PVC |
8.13
Messenger1 |
|
|
113055 |
RG7
Burial |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al
Tape |
Al |
60% |
0.76 |
PE |
8.13
Floodant2 |
|
|
113056 |
RG7
Trishield |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape |
0.81 |
PVC |
8.20 |
|
|
113057 |
RG7
Trishield |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape |
0.81 |
FRPVC |
8.20 |
|
|
113058 |
RG7
Trishield |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape |
0.81 |
PE |
8.20 |
|
|
113059 |
RG7
Trishield
Messenger |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape |
0.81 |
PVC |
8.20
Messenger1 |
|
|
113060 |
RG7
Trishield
Burial |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape |
0.81 |
PE |
8.20
Floodant2 |
|
|
113061 |
RG7
Quadshield |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape + Al wire 40% |
0.86 |
PVC |
8.64 |
|
|
113062 |
RG7
Quadshield |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape + Al wire 40% |
0.86 |
FRPVC |
8.64 |
|
|
113063 |
RG7
Quadshield |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape + Al wire 40% |
0.86 |
PE |
8.64 |
|
|
113064 |
RG7
Quadshield
Messenger |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape + Al wire 40% |
0.86 |
PVC |
8.64
Messenger1 |
|
|
113065 |
RG7
Quadshield
Burial |
16 |
CCS |
Foamed PE |
5.72 |
B-Al/P/Al Tape+ Al wire 60%
+ Al/P Tape + Al wire 40% |
0.86 |
PE |
8.64
Floodant2 |
|
Note
*CCS is copper clad steel;
*B-Al/P/Al Tape is bonded aluminum-polypropylene-aluminum laminated tape with overlap;
*Al is aluminum;
*Al/P Tape is aluminum-polypropylene laminated tape with overlap;
*FRPVC is flame retardant PVC;
1 Messenger Diameter 0.072”(1.83mm) Galvanized Steel Wire for Single Type, Diameter 0.072”(2.77mm) Galvanized Steel Wire for Dual Type;
2 Floodant Flooding and PE jacket |
