Product Description
Inner Conductor: 20Gauge[0.032inch (0.81mm) ] CCS(copper covered steel)conductor;
Insulation: gas expanded PE(physical foam PE) ;
Outer Conductor:
Single shield: aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation;
Dual shield: foil shield(aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation) and Al(aluminum) braid wire, various of braiding coverage;
Tri shield: foil shield(aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation),and Al(aluminum) braid wire, and foil shield(aluminum-polypropylene-aluminum laminated tape with overlap);
Quad shield: foil shield(aluminum-polypropylene-aluminum laminated tape with overlap bonded to insulation) ,and Al(aluminum) braid wire, and foil shield(aluminum-polypropylene-aluminum laminated tape with overlap), and Al(aluminum) braid wire, various of braiding coverage ;
Jacket: PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) available;
RoHS Complaints(2002/95/EC)

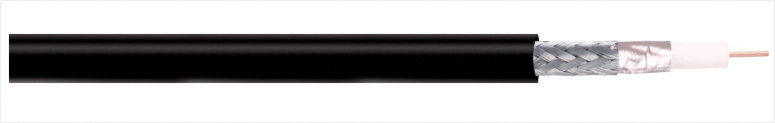

75Ω 59 Series Drop Cable RG59
|
Part No. |
Specification |
Inner
conductor |
Dielectric |
Shield |
Jacket |
Specification
Sheet |
|
AWG |
MTR |
MTR. |
Nom.
Dia |
Foil |
Braid |
Coverage |
Nom.
Thick |
MTR |
Nom.
Dia. |
|
mm |
mm |
mm |
|
113001 |
RG59 |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al
Tape |
Al |
67% |
0.81 |
PVC |
6.10 |
 |
|
113002 |
RG59 |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al
Tape |
Al |
67% |
0.81 |
FRPVC |
6.10 |
|
|
113003 |
RG59 |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al
Tape |
Al |
67% |
0.81 |
PE |
6.10 |
|
|
113004 |
RG59
Messenger |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al
Tape |
Al |
67% |
0.81 |
PVC |
6.10
Messenger1 |
|
|
113005 |
RG59
Burial |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al
Tape |
Al |
67% |
0.81 |
PE |
6.10
Floodant2 |
|
|
113006 |
RG59
Trishield |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al Tape+ Al wire 67%
+ Al/P Tape |
0.81 |
PVC |
6.10 |
|
|
113007 |
RG59
Trishield |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al Tape+ Al wire 67%
+ Al/P Tape |
0.81 |
FRPVC |
6.10 |
|
|
113008 |
RG59
Trishield |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al Tape+ Al wire 67%
+ Al/P Tap |
0.81 |
PE |
6.10 |
|
|
113009 |
RG59
Trishield
Messenger |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al Tape+ Al wire 67%
+ Al/P Tape |
0.81 |
PVC |
6.10
Messenger1 |
|
|
113010 |
RG59
Trishield
Burial |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al Tape+ Al wire 67%
+ Al/P Tape |
0.81 |
PE |
6.10
Floodant2 |
|
|
113011 |
RG59
Quadshield |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al Tape+ Al wire 53%
+ Al/P Tape + Al wire 35% |
0.86 |
PVC |
6.73 |
|
|
113012 |
RG59 Quadshield |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al Tape+ Al wire 53%
+ Al/P Tape + Al wire 35% |
0.86 |
FRPVC |
6.73 |
|
|
113013 |
RG59 Quadshield |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al Tape+ Al wire 53%
+ Al/P Tape + Al wire 35% |
0.86 |
PE |
6.73 |
|
|
113014 |
RG59 Quadshield
Messenger |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al Tape+ Al wire 53%
+ Al/P Tape + Al wire 35% |
0.86 |
PVC |
6.73
Messenger1 |
|
|
113015 |
RG59 Quadshield
Burial |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al Tape+ Al wire 53%
+ Al/P Tape + Al wire 35% |
0.86 |
PE |
6.73
Floodant2 |
|
Note
*CCS is copper clad steel;
*B-Al/P/Al Tape is bonded aluminum-polypropylene-aluminum laminated tape with overlap;
*Al is aluminum;
*Al/P Tape is aluminum-polypropylene laminated tape with overlap;
*FRPVC is flame retardant PVC;
1 Messenger Diameter 0.051”(1.30mm) Galvanized Steel Wire for Single Type, Diameter 0.072”(1.83mm) Galvanized Steel Wire for Dual Type;
2 Floodant Flooding and PE jacket. |
