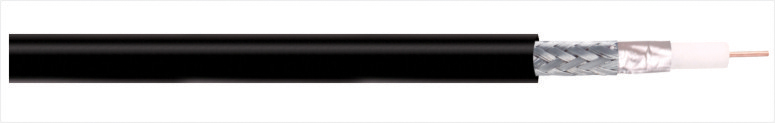

Product Description
Inner Conductor: solid CCS(copper covered steel)conductor;
Insulation: gas expanded PE(physical foam PE) or solid PE ;
Outer Conductor:
Single shield:BC(bare copper) braiding,
or Dual shield: foil shield(aluminum-polypropylene-aluminum laminated tape with overlap) and Al(aluminum) wire braiding, various of coverage;
or Quad shield: [foil shield(bonded aluminum-polypropylene-aluminum laminated tape with overlap), and Al(aluminum) wire braiding, various of coverage, and foil shield(aluminum-polypropylene-aluminum laminated tape with overlap), and Al(aluminum) wire braiding, various of coverage] ;
Jacket: PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) available;
RoHS Complaints(2002/95/EC)
Application
For broad video, video distribution connect;
Flooding and PE jacket for underground;
PVC jacket for general purpose;
FRPVC(Flame Retardant), LSZH(Low Smoke & Zero Halogen) version for indoor purpose;
PE jacket for outdoor purpose;
Dual construction is available.
|
Part No. |
Specification |
Inner
conductor |
Dielectric |
Shield |
Jacket |
Specification
Sheet |
|
AWG |
MTR. |
MTR. |
Nom.
Dia. |
Foil |
Braid |
Coverage |
MTR. |
Nom.
Thick |
Nom.
Dia. |
|
mm |
mm |
mm |
|
113121 |
RG59
Quad |
20 |
CCS |
Foamed PE |
3.66 |
B-Al/P/Al Tape + Al wire 60+ Al/P Tape+ Al wire 40% |
FRPVC |
0.89 |
6.70 |
 |
|
113122 |
RG59 |
22 |
CCS |
Foamed PE |
3.66 |
----- |
BC |
95% |
FRPVC |
0.89 |
6.10 |
|
|
113123 |
RG59 |
22 |
CCS |
PE |
3.66 |
----- |
BC |
90% |
FRPVC |
0.89 |
6.10 |
|
|
113124 |
RG59 |
23 |
CCS |
PE |
3.71 |
----- |
BC |
95% |
PVC |
0.89 |
6.10 |
|
|
113125 |
RG59 |
20 |
CCS |
Foamed PE |
3.66 |
Al/P
Tape |
Al |
40% |
FRPVC |
0..89 |
6.10 |
|
|
113126 |
RG59 |
20 |
CCS |
Foamed PE |
3.66 |
Al/P
Tape |
Al |
67% |
FRPVC |
0.89 |
6.10 |
|
|
113127 |
RG59
Burial |
20 |
CCS |
Foamed PE |
3.66 |
Al/P
Tape |
Al |
67% |
PE |
0.89 |
6.10
Floodant1 |
|
|
113128 |
RG59 |
20 |
CCS |
Foamed PE |
3.66 |
Al/P
Tape |
Al |
95% |
FRPVC |
0.89 |
6.10 |
|
Note:
*BC is bare copper;
*CCS is copper clad steel;
*B-Al/P/Al Tape is bonded aluminum-polypropylene-aluminum laminated tape with overlap;
*Al is aluminum;
*Al/P Tape is aluminum-polypropylene laminated tape with overlap;
*FRPVC is flame retardant PVC;
1 Floodant Flooding and PE jacket.
|
